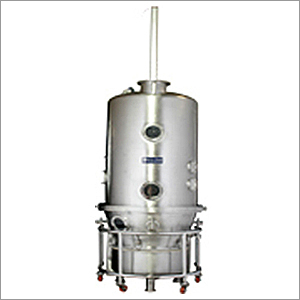

Fluid Bed Dryer :
The Fluid bed dryer works on the principal of creating a fluid turbulence in a granulated or powdery wet product by means of hot air (or dehumidified air) flowing in an upward direction and dry the same to the required degree in a careful manner.
Salient Features
- All contact parts are S.S. 316 as per GMP Standard.
- Uniform Drying at low temperature.
- Intrinsically safe earthing system ensure complete elimination of static charge.
- 65% open Perforated air distribution plate along with Dutch weave mesh.
- On line sampling Port.
- Fan motor unit & Filteration unit can be placed in remote areas.
- heating mode electrical / steam / thermic fluid.
- Pneumatically operated inflatable seals provided for filter bag and product container sealing with
pressure switches & FRL to ensure fail safe operation.
- Top mounted pneumatic cylinder (directly coupled ) for shaking (without wire rope system )
- minimum handling more Hygienic.
- 2.5kg. to 500kg. batch capacity
- Top Spry Granulation
Safety
- Explosion vent
- Explosion vent is provided with rupture disk
- Positive Earthing Device
- Ensures complete elimination of static charge.
- Solid Flow moniter:
- To prevent the product losses due to rupture of filter bag.
Application
The fluid bed drying technique is ideal for the rapid, even drying of chemical, pharmaceutical and food product. The material may be in granular, powder or crystalline form. Normally an initial moisture content up to 20% is ideal but materials with higher initial moisture content can be dried successfully.
Documentation
Elicon Fluid Bed Dryer comes along with all documentation like DQ, IQ, OQ, and FAT as a part of standard procedure.
Technical Specification
| Model |
EP -10 |
EP -30 |
EP - 60 |
EP -120 |
EP -150 |
EP -200 |
EP -250 |
EP -300 |
| Bowl Volume (Liters) |
35 |
110 |
200 |
425 |
500 |
625 |
780 |
925 |
| Batch Size (Kgs) |
10-15 |
30-40 |
60-75 |
120-150 |
150-180 |
200-230 |
250-280 |
300-330 |
Heating Load : (kw)
For Electrical Heating |
6 |
18 |
36 |
54* |
60* |
* |
* |
* |
Approx. steam
Consumption Kgs/hr.
(Steampressure 3.5 Kg. /cm2) |
15 |
25 |
50 |
100 |
130 |
170 |
200 |
250 |
| Motor (H.P.) |
2 |
5 |
10 |
15 |
20 |
20 |
25 |
30 |
| Drying Temp C* |
50-80 |
50-80 |
50-80 |
50-80 |
50-80 |
50-80 |
50-80 |
50-80 |
| Height H1 (Approx) mm |
1600 |
1900 |
2200 |
2550 |
2600 |
2800 |
3000 |
3100 |
| Height H2 (Approx) mm |
2000 |
2250 |
3000 |
3500 |
3500 |
3900 |
4000 |
4200 |
| Width (Approx) mm |
1050 |
1400 |
1550 |
1800 |
1850 |
2000 |
2100 |
2150 |
| Lenth (Approx) mm |
800 |
1250 |
1500 |
1700 |
1700 |
2000 |
2100 |
2200 |
|
