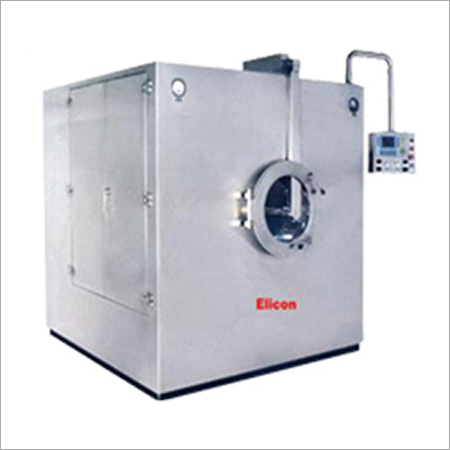

Pharmaceutical Tablet Coater
Product Details:
Product Description
We are a well established organization engaged in manufacturing, supplying and exporting Elicon Coater. These coaters are designed and developed by a team of diligent professionals as per the GMP standard. Making optimum utilization of modern tools, advanced technology and stainless steel of grade 316 make these coaters highly efficient in performance. Offered coaters comprise front entry SS arm and adjustable angle of spray guns. The Elicon Coater manufactured by us is highly demanded worldwide and we have made it available at market leading prices.
Other information:
- All contact parts made of SS 316 as per GMP standard
- Perforated pan with more than 55% perforation opening for process optimization and to reduce the losses during the process.
- The unique perforated pan design utilizes a totally enclosed, highly efficient air flow system for maximum drying uniformity and minimum process air usage.
- Pan speed control via VFD.
- Front entry stainless steel arm, with facility to adjust the angle pf spray guns is provided
- LHS and RHS wall of the machine will be insulated with Glass wool to prevent the heat lose.
Optional Accessories
- Air Velocity measurement
- Inlet air humidity measurement
- HEPA maintenance monitoring
- Chilled water control valve ( De Humidification valve)
- PLC Control with color Touch Screen Display
- Connectivity of SCADA System
- Inlet & exhaust air ducting
- 0.3 micron Hepa filtration unit
Technical Specifications
| Model | EP-600 | EP-900 | EP-1200 | EP-1500 |
| Capacity (Depending upon tablet, shape, size and density) | 10 -15Kgs | 50-75 Kgs | 120-150 Kgs | 300 -350Kgs |
| Drum dia (mm) | 610 | 915 | 1220 | 1525 |
| Drum RPM | 6-24 | 3-15 | 3-15 | 2-11 |
| Total Electric load (approx) | 5 Kw | 10 Kw | 15 Kw | 35 Kw |
| Compressed Air | 6 bar -45CFM | 6 Bar -65 CFM | 6 Bar- 85 CFM | 6 bar -125 CFM |
| Steam consumption (Kgs /hr) | 45 | 110 | 145 | 450 |
| Steam Consumption (kgs /Cm2) | 3 | 3 | 3 | 4 |
| Electrical heating : (Optional) (Kw) | 11 | 30 | 36 | 160 |
